HSR150HB THK滑塊 THK導軌 日本滑塊導軌

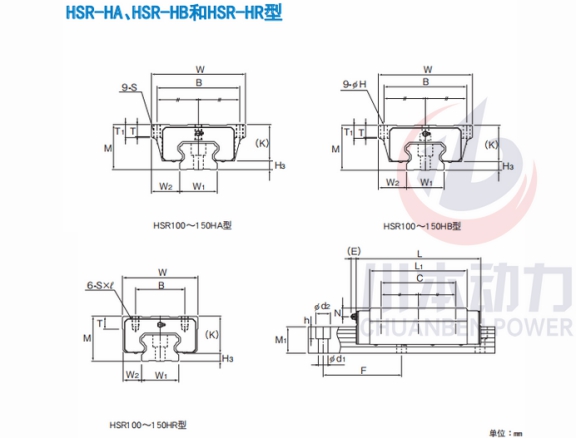

外形尺寸 | 高度M | 145 | mm |
寬度W | 350 | mm | |
長度L | 396 | mm | |
LM滑塊尺寸 | B | 300 | mm |
C | 230 | mm | |
H | 26 | mm | |
S*l | - | mm | |
L1 | 314 | mm | |
T | 36 | mm | |
T1 | 40 | mm | |
K | 123 | mm | |
N | 29 | mm | |
E | 16 | mm | |
油嘴 | B-PT1/4 | mm | |
H3 | H3 | 22 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 144 | mm |
W2 | 103 | mm | |
高度M1 | 85 | mm | |
孔距F | 250 | mm | |
d1*d2*h | 39*58*46 | mm | |
長度*Max | 3000 | mm | |
基本動額定載荷 | C | 518 | kN |
基本靜額定載荷 | C0 | 728 | kN |
靜態容許力矩 | MA單滑塊 | 33.6 | kN-m |
MA雙滑塊 | 167 | kN-m | |
MB單滑塊 | 33.6 | kN-m | |
MB雙滑塊 | 167 | kN-m | |
MC單滑塊 | 45.2 | kN-m | |
重量 | LM滑塊 | 62 | kg |
LM軌道 | 87 | kg/m |
